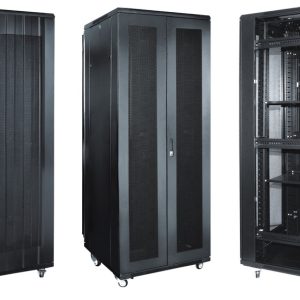

EDP 19″ SERVER RACK features:

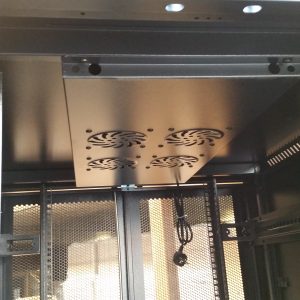

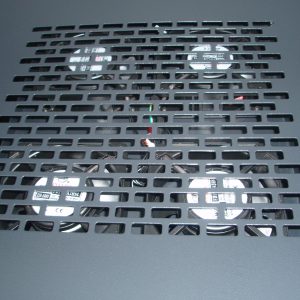

Cabinet top includes ventilation sleeves on the sides and a fan unit with 4 fans in the top.

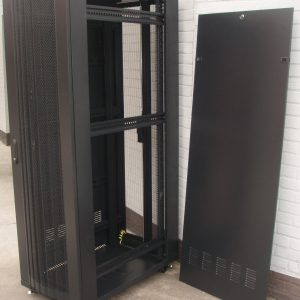

Removable side panels with 2 locks and a separate key lock.

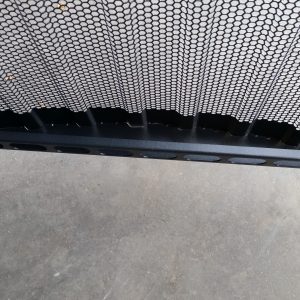

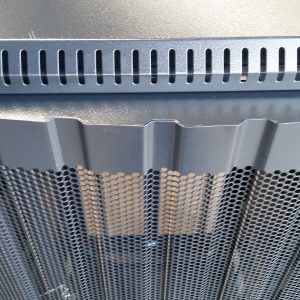

85% vented curved front door with handle with key lock and easily removable with hinge pin with spring.

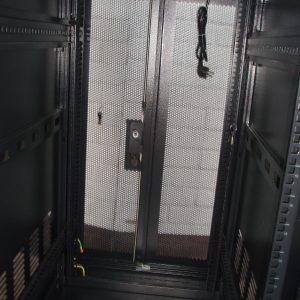

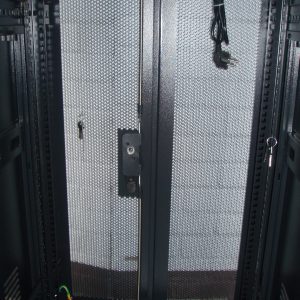

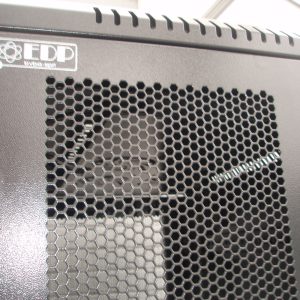

85% vented double rear doors with handle with key lock and easily removable with hinge pin with spring.
doors can be installed to be opened right side or left side, and simply removed by a hinge pin with spring.

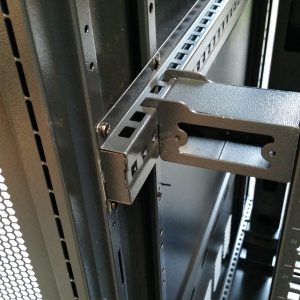

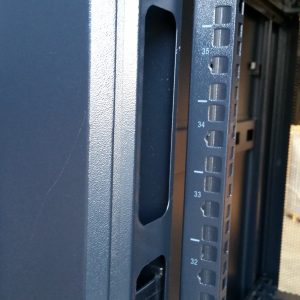

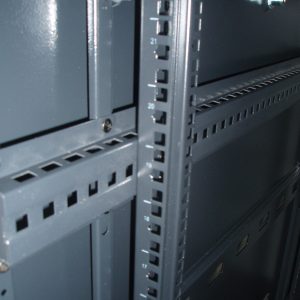

2 paires of 19″ profiles of 2 mm thick, adjustable in depth, with unit-height indication
Ventilation sleeves in top & bottom.

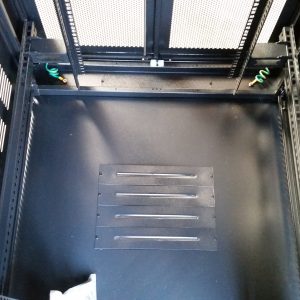

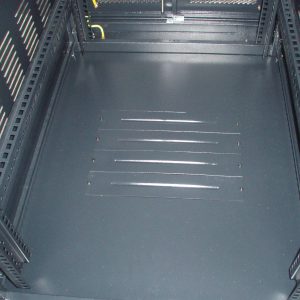

Several cable entry plates in top & bottom.

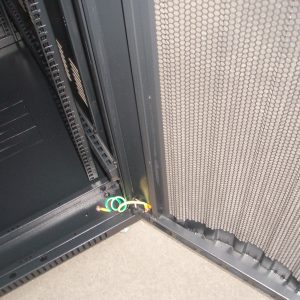

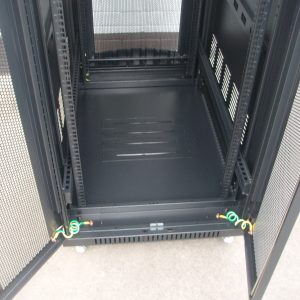

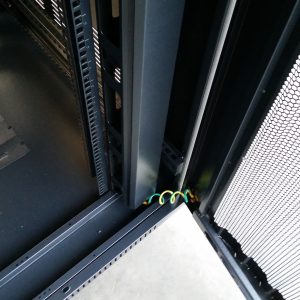

Earth studs in the doors, and rack body.
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART 1 & PART 7 standards.
Powder coated in black RAL9005.
Swiveling castors with locks and jacking feet can be jointly installed to withstand up to 800 kg maximum static load, and are included.
Below the standard EDP server racks available from stock:
|
REF.
|
H. (U)
|
H. (mm)
|
Width
|
Depth
|
Listprice (€)
|
|
19″ server racks – 85% vented Front door – 80% vented double rear door – removable sides
|
|||||
|
TN001-6012
|
12 U
|
721 mm.
|
600 mm.
|
1000 mm.
|
563,92 €
|
|

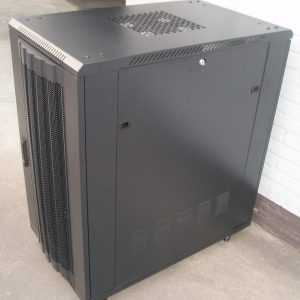

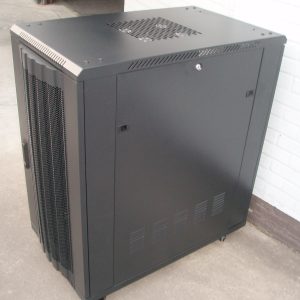

TN001-6022
|
22 U
|
1166 mm.
|
600 mm.
|
1000 mm.
|
739,42 €
|
|
TN001-6027
|
27 U
|
1388 mm.
|
600 mm.
|
1000 mm.
|
812,15 €
|
|
TN001-6042
|
42 U
|
2055 mm.
|
600 mm.
|
1000 mm.
|
1037,53 €
|
|
TN001-8842
|
42 U
|
2055 mm.
|
800 mm.
|
800 mm.
|
1151,99 €
|
|
TN001-8042
|
42 U
|
2055 mm.
|
800 mm.
|
1000 mm.
|
1267,21 €
|
