BNC Patch panels

As a standard, we offer 16 types of BNC termination panels, which are populated with through bulkhead isolated 75 Ohms BNC-BNC connectors. Available in 1U, 2U and 3U high, manufactured from aluminium extrusion and finished in Dawn Mist semi-gloss paint, the panel assemblies are equipped with designation strips and lacing bars for cable strain relief.

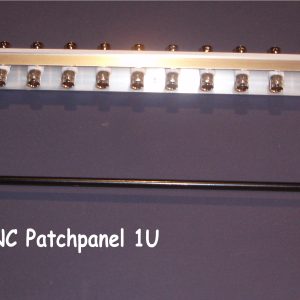

CTP-1B12 1 row 12 BNC-BNC termination panel of 1 U at 109,25 €

CTP-1B16 1 row 16 BNC-BNC termination panel of 1 U at 134,28 €

CTP-1B20 1 row 20 BNC-BNC termination panel of 1 U at 160,41 €

CTP-1B24 1 row 24 BNC-BNC termination panel of 1 U at 175,76 €

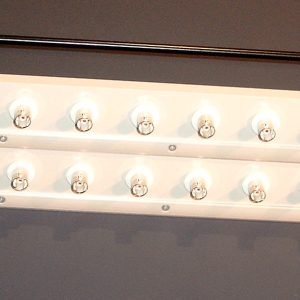

CTP-2B12 2 rows 12 BNC-BNC termination panel of 2 U at 182,13 €

CTP-2B16 2 rows 16 BNC-BNC termination panel of 2 U at 223,82 €

CTP-2B20 2 rows 20 BNC-BNC termination panel of 2 U at 267,33 €

CTP-2B24 2 rows 24 BNC-BNC termination panel of 2 U at 292,51 €

CTP-3B12 3 rows 12 BNC-BNC termination panel of 3 U at 273,18 €

CTP-3B16 3 rows 16 BNC-BNC termination panel of 3 U at 335,74 €

CTP-3B20 3 rows 20 BNC-BNC termination panel of 3 U at 401,02 €

CTP-3B24 3 rows 24 BNC-BNC termination panel of 3 U at 439,91 €

CTP-4B12 4 rows 12 BNC-BNC termination panel of 3 U at 364,53 €

CTP-4B16 4 rows 16 BNC-BNC termination panel of 3 U at 452,83 €

CTP-4B20 4 rows 20 BNC-BNC termination panel of 3 U at 541,18 €

CTP-4B24 4 rows 24 BNC-BNC termination panel of 3 U at 572,39 €
